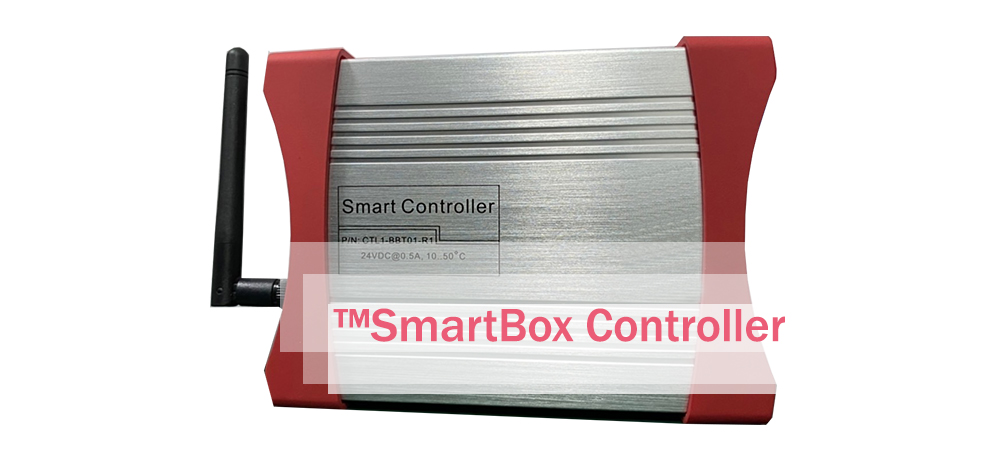

PART NUMBER : CTL1-BBT01-R1
SPEFICATION:
>> Controller box for an Automation System
>> To support Debian base Linux OS, Kernel 4.19 and 5.10
>> To controlled Bosch battery tool up to 5 tools
>> Rugged aluminium casing
>> 1 x 10/100 RJ45 Ethernet port
>> 1 x Wi-Fi 2.4GHz IEEE802.11 b/g/n
>> 1 x Bluetooth 4.2
>> 4 x Digital 24V PNP type input
>> 4 x Digital 24V NPN type output, 200mA/Ch.
>> Dimensions : W x H x D = 112mm x 47mm x 115mm
>> Weight : approx. 1.0Kg
>> Supply : 24V, 0.7A
>> Operation temperature : 10 .. 50°C

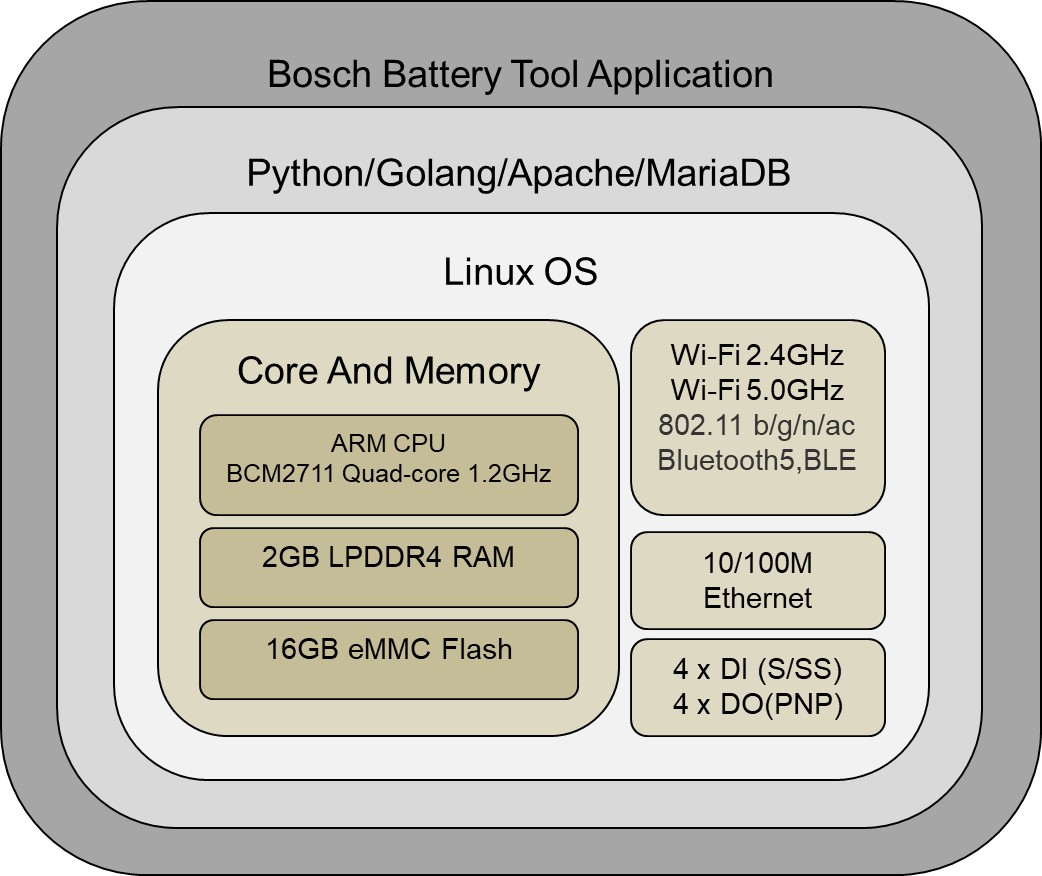

Diagram of Smart Box
Electrical of Smart Box
Function:
>> To support Ford Production Control System via Open Protocol
>> To communication with Ford System by Ethernet port
>> To communication with others device by Wi-Fi 2.4GHz or Bluetooth 4.2
>> Use 1 Ethernet port for 5 Bosch tools
>> To send OK and NG to Ford System (NG = Low torque)
>> Process will start when Ford send VIN to Smart Box
>> Smart Box will send Batch Size to Bosch tool
>> Bosch tool will Green LED blinking during job
